Throughput: 1.2s per 2 pieces | Processes: Cutting, Insertion, Crimping

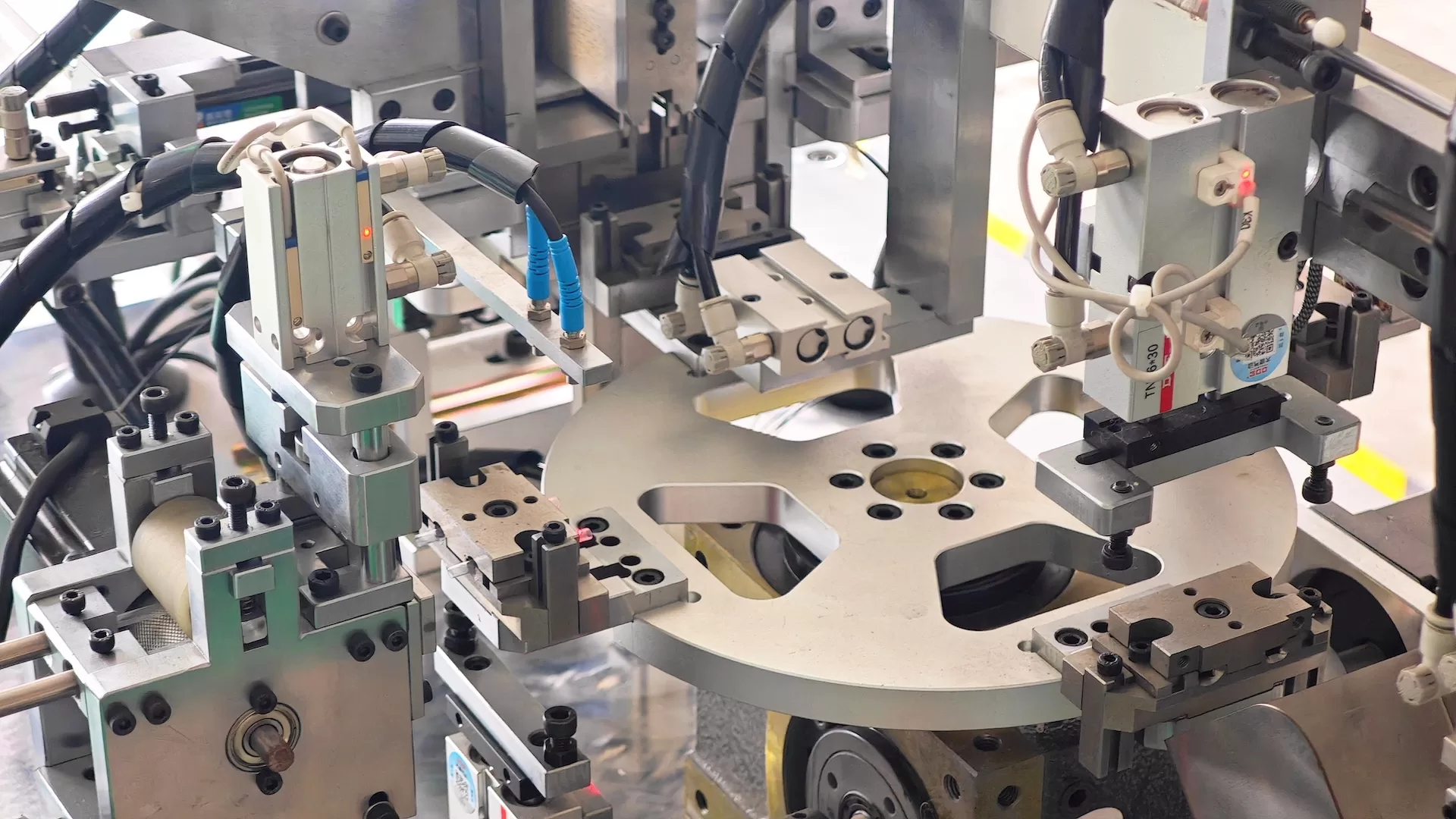

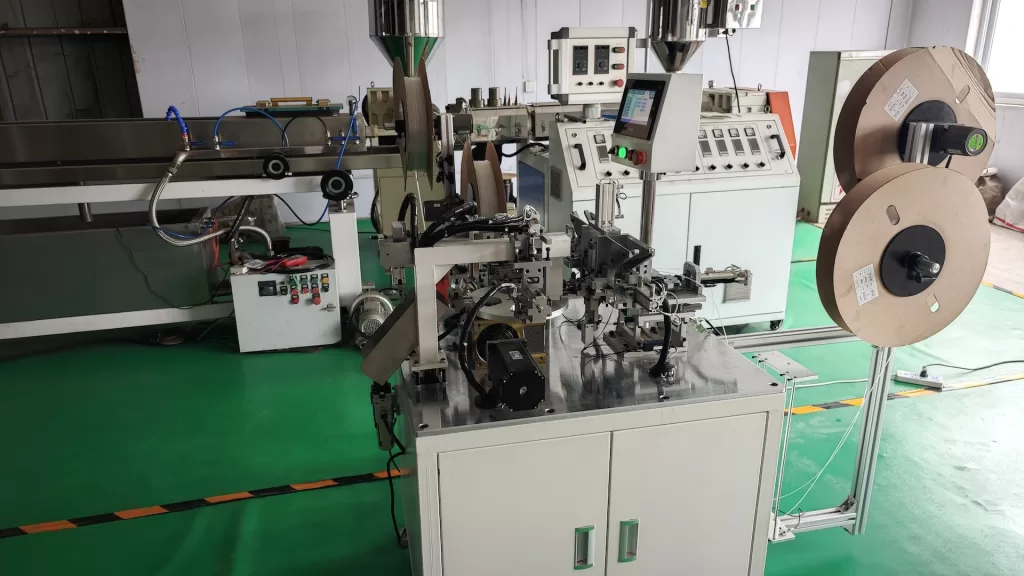

Fiber Optic Splice Protection Sleeve Automatic Assembly Machine
This equipment is suitable for the fully automated production of stainless steel needle-reinforced single-core optical fiber fusion splicing heat shrink protective sleeves, including automatic tube cutting, assembly, and preheating at both ends.
The 2-Station Automatic Assembly Machine for Fiber Optic Heat-Shrinkable Sleeves is a high-performance, fully automated solution engineered for the precision assembly of optical fiber protection sleeves. Designed to meet the demanding throughput requirements of modern fiber optic manufacturing, this advanced assembly system integrates three critical processes—cutting, inserting, and crimping—into a single, streamlined production workflow.
Featuring a dual-station configuration, the machine achieves an exceptional cycle time of up to 1.2 seconds per 2 pieces, significantly boosting production capacity while maintaining consistent quality. This high-speed performance makes it an ideal choice for high-volume manufacturing environments, including FTTH (Fiber to the Home) component production, patch cord assembly lines, and optical connector termination facilities.
The machine’s integrated design eliminates the need for manual intervention across multiple workstations. It automatically performs:
Precision Cutting: Accurately cuts heat-shrinkable sleeves to specified lengths.
Automated Insertion: Precisely inserts the cut sleeve over the optical fiber or component.
Reliable Crimping: Applies consistent crimping force to secure the sleeve and reinforce the splice joint.
This fully automated approach reduces handling errors, minimizes material waste, and ensures repeatable, high-quality terminations
Ideal for manufacturers of fiber optic jumpers, MPO/MTP harnesses, and other optical cable assemblies, this machine delivers:
Labor Cost Reduction: Replaces manual sleeve assembly with automated, high-speed operation.
Consistent Quality: Eliminates variability associated with manual cutting and crimping.
High Flexibility: Accommodates various sleeve sizes and cable types, adapting to diverse production needs.
Steel needle: Diameter 1.0- 1.5 mm, Length 40- 55 mm
Heat shrink tubing: Diameter to fit, Length 45- 60 mm
Heat melt tubing: Diameter to fit, Length 45- 60 mm
